NX3225SA-12M-STD-CSR-3 Nihon Dempa Kogyo (NDK) Resonators - 商品詳細情報

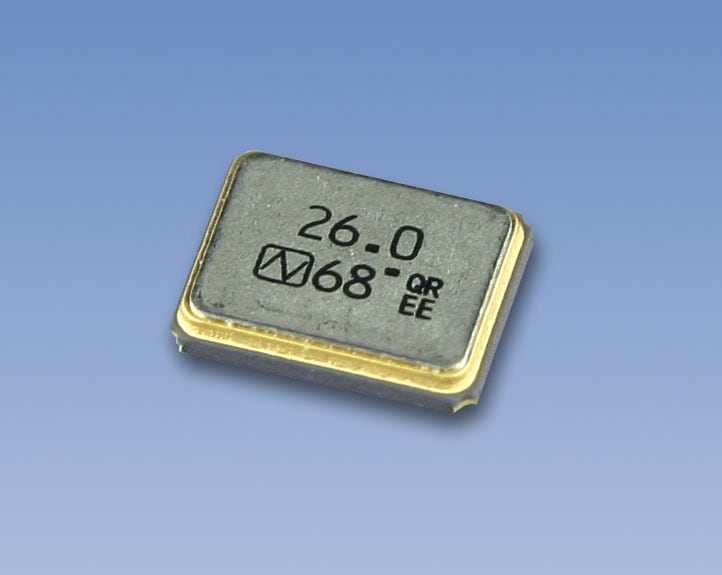

NX3225SA-12M-STD-CSR-3

Nihon Dempa Kogyo (NDK)

Resonators

Search Alternative Products

Show Similar

NX3225SA-12M-STD-CSR-3

Nihon Dempa Kogyo (NDK)

Resonators

Nihon Dempa Kogyo (NDK)

Resonators

Lifecycle Status : NRND

ECCN : EAR99

HTSN : 8541600050

Search Alternative Products

Show Similar

Lifecycle Status : NRND

ECCN : EAR99

HTSN : 8541600050

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Nihon Dempa Kogyo (NDK)_Datasheet_20150323132755142

Specifications

Manufacturer name: Nihon Dempa Kogyo (NDK)

Product name: NX3225SA-12M-STD-CSR-3

Product classification: Resonators

Lifecycle Status: NRND

RoHS: RoHS

Frequency: 12MHz

Frequency deviation: 15ppm

Load capacity: 8pF

Package: 3225(1210inch)

Size: 3.2×2.5×0.55mm

Frequency temperature stability: ±15ppm

Length: 3.2mm

Maximum service temperature: +75°C

Minimum service temperature: -10°C

Height: 0.55mm

Series name: NX3225SA

Type: Crystal

Width: 2.5mm

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 3000

If you find an error in the product information, please let us know here.
