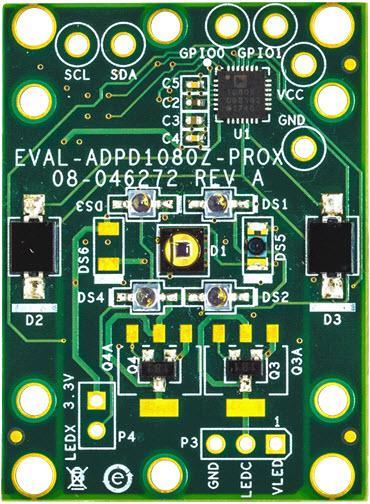

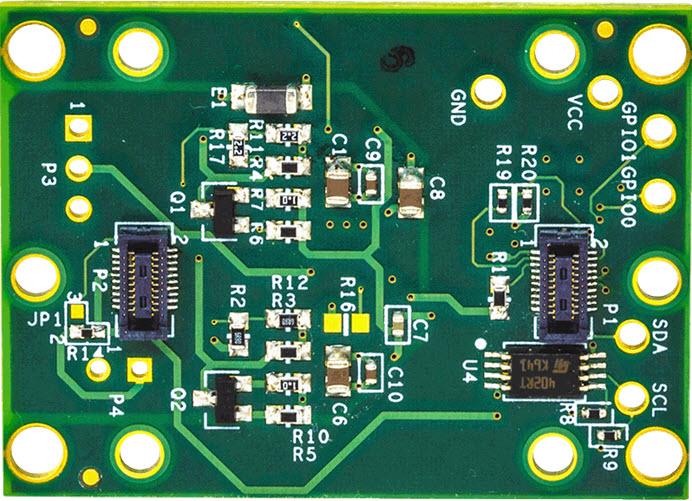

EVAL-ADPD1080Z-PRX, Evaluation Kit
- Reference Design
1.General Description
EVAL-ADPD1080Z-PRX, Evaluation Kit provides users with a simple means of connecting with the ADPD1080 hardware, collecting data from the ADPD1080, and evaluating long range proximity capabilities. The ADPD1080 hardware is configured with a large area, p-type, intrinsic, n-type (PIN) semiconductor photodiode as a proximity sensor. In this configuration, motion and proximity in front of the EVAL-ADPD1080Z-PRX are measured by detecting the amount of infrared (IR) light reflected off of objects and the change in IR light as objects move relative to the EVAL-ADPD1080Z-PRX
2.Features
- ● Full configuration of the ADPD1080
- ● Register level
- ● Parameter level
- ● Graph views
- ● Time series view
- ● Long range proximity view
- ● UDP transfer capability
| Manufacturer | Categories | Application |
|---|---|---|
Analog Devices |
Evaluation Development Boards, Kits, and Programmers | Lighting |
BOM Information
