MPRLS0025PA00001A Honeywell Pressure sensors, transducers - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- Honeywell
- Product name
- MPRLS0025PA00001A
- Product classification
- Pressure sensors, transducers
- Lifecycle Status
- Active
- RoHS
- RoHS
- Other names
- 480-7098-1 | 480-7098-2 | 480-7098-6
- Accuracy
- 0.25%
- Feature
- Amplified Output|Temperature Compensated
- Maximum pressure
- 413.69kPa(60PSI)
- Number of bits
- 24 b
- Operating Pressure
- 172.37kPa(25PSI)
- Operating temperature range
- -40 to 85C
- Output type
- I2C
- Package
- 12-SMD Module
- Port Size
- Male-2.5mm(0.1inch) Tube
- Port Style
- No Barbed
- Pressure type
- Absolutely
- Purpose
- Board Mount
- Series name
- MPR|Flame Retardant
- Supply voltage
- 1.8 to 3.6V
- Terminal
- SMD(SMT)Tab
- Manufacturer packaging quantity
- 700
If you find an error in the product information, please let us know here.
Reference Design
Reference designs list is here.
-

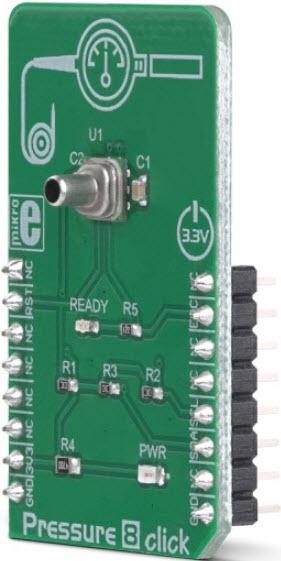

MIKROE-3338
1.General DescriptionMIKROE-3338, Pressure 8 Click Board is an accurate and fully calibrated pressure sensor, equipped with the MPR series integrated piezoresistive silicon pressure sensor IC. This sensor offers many benefits, including low power consumption, high resolution of the output data (24 bit), stainless steel housing, compatibility with a variety of liquid media, high accuracy over a wide range of temperatures. The most distinctive feature of these sensors is its ability to output calibrated and compensated 24-bit data over a digital interface, which greatly simplifies the software design, cutting the time to market
