PP3-002A Same Sky (formerly CUI Devices) Connector Power - 商品詳細情報

PP3-002A

Same Sky (formerly CUI Devices)

Connector Power

Search Alternative Products

Show Similar

PP3-002A

Same Sky (formerly CUI Devices)

Connector Power

Same Sky (formerly CUI Devices)

Connector Power

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536698000

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: PP3-002A

Product classification: Connector Power

Lifecycle Status: Active

Rated Voltage(DC): 20V

Rated Voltage(AC): 24VAC

Connector Type: Plug

Inner diameter: 2.1mm

Mounting Type: Cable - Modular

Number of Conductors: 2

Shield: No

Length: 34mm

Width: 8.2mm

Height: 8.2mm

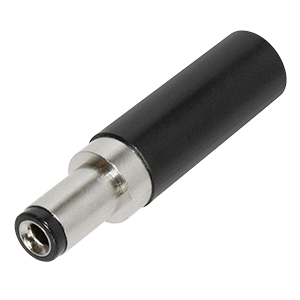

Description: power plug, 2.0 x 5.5 x 9.5 mm, straight, cable mount

Feature: Cable

Dimension: 0.32, 1.34, 0.32in

Current　rating: 6A

Other names: 045-1033R | PP3002A | CP3-1000

If you find an error in the product information, please let us know here.

Details

Click here for 3D Model

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20210204150456579
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204129926
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181556210

Expected Shipping Date : Jul-28-25

C1S Part Number
:
C1S168000303335

Ship-from

Stock : 3,122

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 1/1
Minimum: 1 Multiples: 1

Quantity	Pricing(USD)
1+	US$1.3872
10+	US$1.1756
25+	US$1.1014
50+	US$1.0487
100+	US$0.9986
250+	US$0.936
500+	US$0.8914
1,000+	US$0.8488
2,500+	US$0.7957

Price: US$1.3872

Merchandise total: US$1.39

Processing costs, etc.: US$0

Total(USD): US$1.39
