OM-7604-C7 32.768kHz 20ppm TA QC Micro Crystal Crystal Oscillators - 商品詳細情報

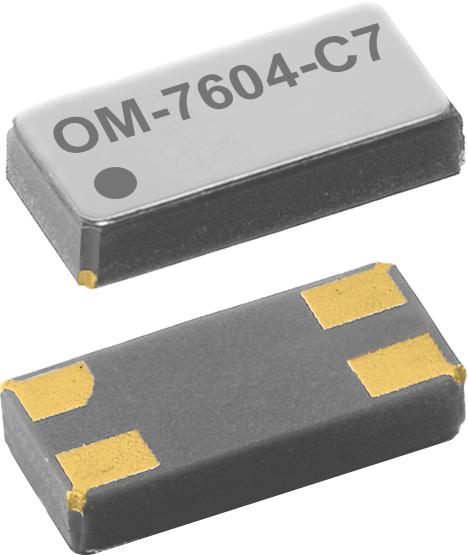

OM-7604-C7 32.768kHz 20ppm TA QC

Micro Crystal

Crystal Oscillators

Search Alternative Products

Show Similar

OM-7604-C7 32.768kHz 20ppm TA QC

Product Overview

Lifecycle Status : Active

HTSN : 8542390060

Search Alternative Products

Show Similar

Product Overview

OM-7604-C7 32.768kHz 20ppm TA QC

Lifecycle Status : Active

HTSN : 8542390060

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Micro Crystal

Product name: OM-7604-C7 32.768kHz 20ppm TA QC

Product classification: Crystal Oscillators

Lifecycle Status: Active

RoHS: RoHS

Package: 4-Terminal Ceramic Leadless Chip Carrier [LCC4]

Frequency: 32.768kHz

Size: 3.2 x 1.5 x 0.70

Frequency deviation: 20ppm

Number of Pins: 4

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 1000

If you find an error in the product information, please let us know here.

Documents

Data Sheet
Datasheet	EN_Microcrystal_Datasheet_20241216105420045
Technical Data
Application Note	EN_Microcrystal_Application Note_20241216105425180
