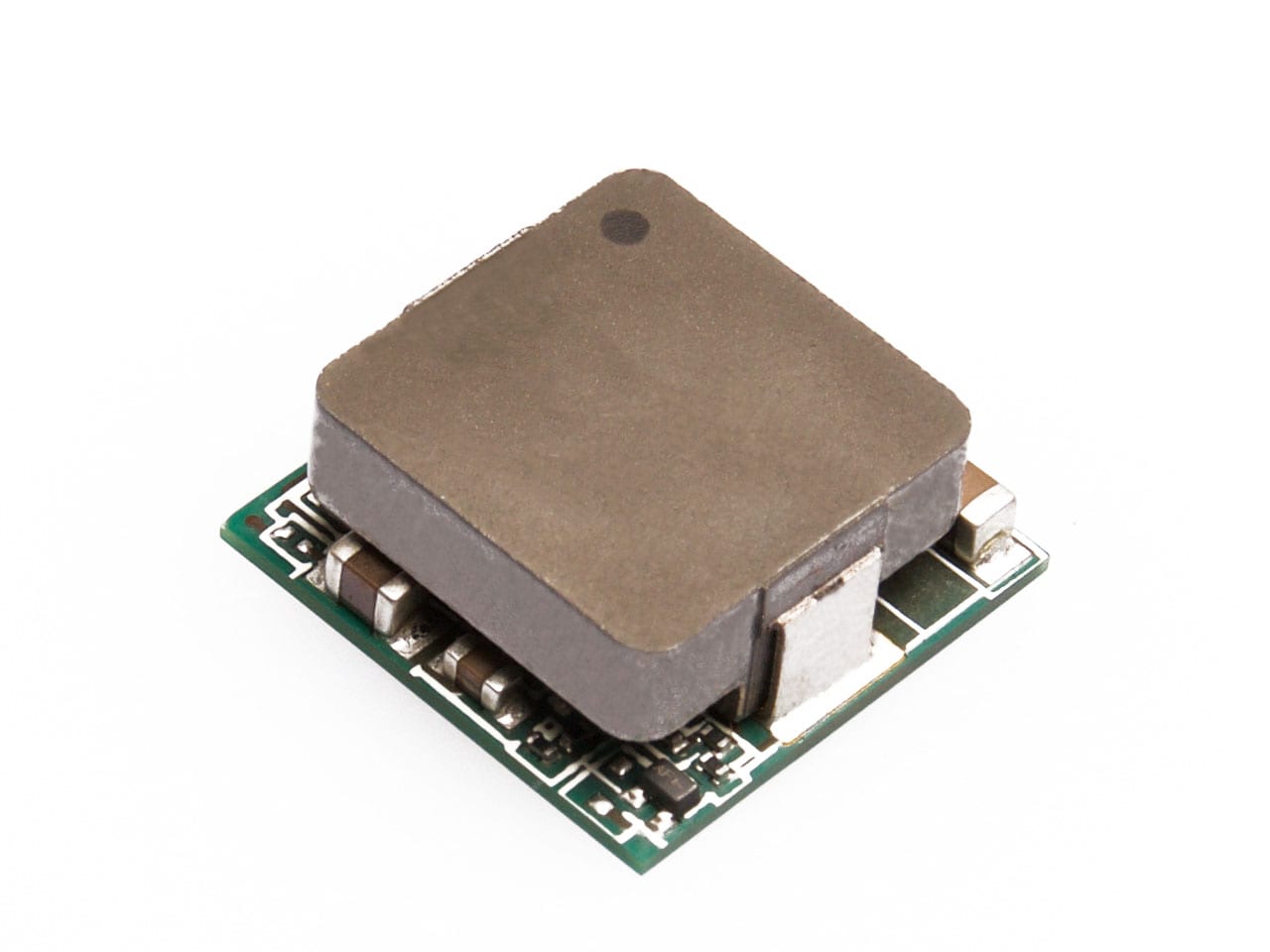

MPN12AD06-TS Cyntec DC/DC Switching Regulators - 商品詳細情報

MPN12AD06-TS

Cyntec

DC/DC Switching Regulators

Search Alternative Products

Show Similar

MPN12AD06-TS

Cyntec

DC/DC Switching Regulators

Cyntec

DC/DC Switching Regulators

Lifecycle Status : NRND

HTSN : 8504409580

Search Alternative Products

Show Similar

Lifecycle Status : NRND

HTSN : 8504409580

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information
PCN/PDN(EOL)

Data Sheet
Datasheet	EN_Cyntec_Datasheet_20241212130538035

Specifications

Manufacturer name: Cyntec

Product name: MPN12AD06-TS

Product classification: DC/DC Switching Regulators

Lifecycle Status: NRND

Type: Non-Isolated PoL Module

Fan-out: 1

Output Power: 4.5V

Maximum input voltage: 16V

Output voltage: 0.6 to 5.5V

Input voltage: 4.5 to 16V

Package: SMD

Size: 12.20X12.20X5.40mm

Other names: 2037-MPN12AD06-TSTR

Output current: 6A
