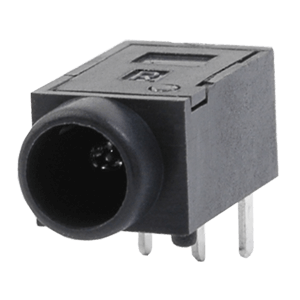

PJ-040DH Same Sky (formerly CUI Devices) Connector Power - 商品詳細情報

PJ-040DH

Same Sky (formerly CUI Devices)

Connector Power

Search Alternative Products

Show Similar

PJ-040DH

Same Sky (formerly CUI Devices)

Connector Power

Same Sky (formerly CUI Devices)

Connector Power

Product Overview

1.3 x 3.8 mm, 3.5 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

1.3 x 3.8 mm, 3.5 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: PJ-040DH

Product classification: Connector Power

Lifecycle Status: Active

Series name: power jack, 1.3 x 3.8 mm, horizontal, through hole, high current, 1 switch

Rated Voltage(DC): 24V

Rated Voltage(AC): 24VAC

Connector Type: Jack

Inner diameter: 1.3mm

Mounting Type: Through Hole

Orientation: Horizontal

Number of Conductors: 2

Shield: No

Length: 9mm

Width: 6mm

Height: 5mm

Size: 9.00X6.00X5.00mm

Feature: Through Hole

Dimension: 0.35, 0.24, 0.2in

Current　rating: 3.5A

Other names: PJ040DH | 045-1163R | CP-040DH

Manufacturer Packaging: Tray

If you find an error in the product information, please let us know here.

Details

Click here for 3D Model

Click here for PCB footprint

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20210204150456051
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204201690
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204181625594
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185448412
