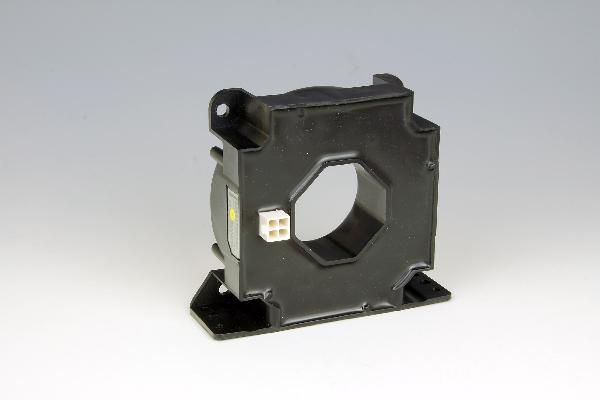

S29S1T0D24Z Tamura Current sensor - 商品詳細情報

S29S1T0D24Z

Tamura

Current sensor

Search Alternative Products

Show Similar

S29S1T0D24Z

Product Overview

Closed Loop Current Sensor AC/DC Current +/-15V/+/-24V

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8543709860

Search Alternative Products

Show Similar

Product Overview

Closed Loop Current Sensor AC/DC Current +/-15V/+/-24V

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8543709860

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Tamura

Product name: S29S1T0D24Z

Product classification: Current sensor

Lifecycle Status: Active

RoHS: RoHS

Type: Current Sensor

Rated current: 1kA

Operating principle: クローズドループ

Primary conductor: 貫通型

Series name: S29

Power-supply voltage: -15 to 24 V

Length: 110mm

Width: 34mm

Height: 95mm

Diameter: 38.5mm

Manufacturer Packaging: Tray

If you find an error in the product information, please let us know here.
