1896/5C SL001 Alpha Wire Cable Multi-Conductor - 商品詳細情報

1896/5C SL001

Alpha Wire

Cable Multi-Conductor

Search Alternative Products

Show Similar

1896/5C SL001

Alpha Wire

Cable Multi-Conductor

Alpha Wire

Cable Multi-Conductor

Product Overview

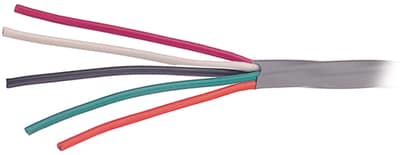

Multi-Conductor Cable 5Conductors 20AWG 30.48m/152.4m/304.8m Tinned Copper 300V

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8544493080

Search Alternative Products

Show Similar

Product Overview

Multi-Conductor Cable 5Conductors 20AWG 30.48m/152.4m/304.8m Tinned Copper 300V

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8544493080

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Alpha Wire_Datasheet_20150422014132147

Specifications

Manufacturer name: Alpha Wire

Product name: 1896/5C SL001

Product classification: Cable Multi-Conductor

Lifecycle Status: Active

RoHS: RoHS

Application category: Communication|Control

Cable type: Multiconductor

Insulation Color: Slate

Insulation Diameter: 5.84mm

Insulation Material: Vinyl Chloride(PVC)

Insulation Thickness: 0.508mm

Length: 304.8m

Number of Conductors: 5

Operating temperature range: -20 to 80C

Stranded Wire: 7/26

Voltage: 300V

Wire Gauge: 20AWG

導体材料: Copper|Tinned

If you find an error in the product information, please let us know here.

Expected Shipping Date : Mar-03-26

C1S Part Number
:
C1S112700001950

Ship-from

Stock : 40

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 1/1
Minimum: 1 Multiples: 1

Packaging:Tape & Reel

Tape & Reel
Tape & Reel is the unmodified original reel received from the manufacturer.
In case the MOQ is smaller than the manufacturer's standard package quantity, it will be cut tapes even if the package is shown as "Tape & Reel".

Quantity	Pricing(USD)
1+	US$147
5+	US$117

Price: US$147

Merchandise total: US$147.00

Processing costs, etc.: US$0

Total(USD): US$147.00
