PJ-007

Same Sky (formerly CUI Devices)

Connector Power

Search Alternative Products

Show Similar

PJ-007

Same Sky (formerly CUI Devices)

Connector Power

Same Sky (formerly CUI Devices)

Connector Power

Product Overview

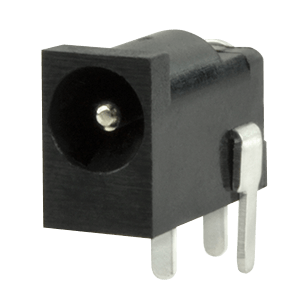

1.3 x 4.2 mm, 2.0 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536695050

Search Alternative Products

Show Similar

Product Overview

1.3 x 4.2 mm, 2.0 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536695050

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: PJ-007

Product classification: Connector Power

Lifecycle Status: Active

Rated Voltage(DC): 16V

Connector Type: Jack

Inner diameter: 1.3mm

Mounting Type: Through Hole

Orientation: Horizontal

Number of Conductors: 2

Shield: No

Length: 11.4mm

Width: 5mm

Height: 7.4mm

Description: power jack, 1.3 x 3.4 mm, rt, through hole, 1 switch

Size: 11.4X5X7.4mm

Feature: Through Hole

Dimension: 0.45, 0.2, 0.29in

Current　rating: 2A

If you find an error in the product information, please let us know here.

Details

Click here for 3D Model

Click here for PCB footprint

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20210204150456201
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204057951
