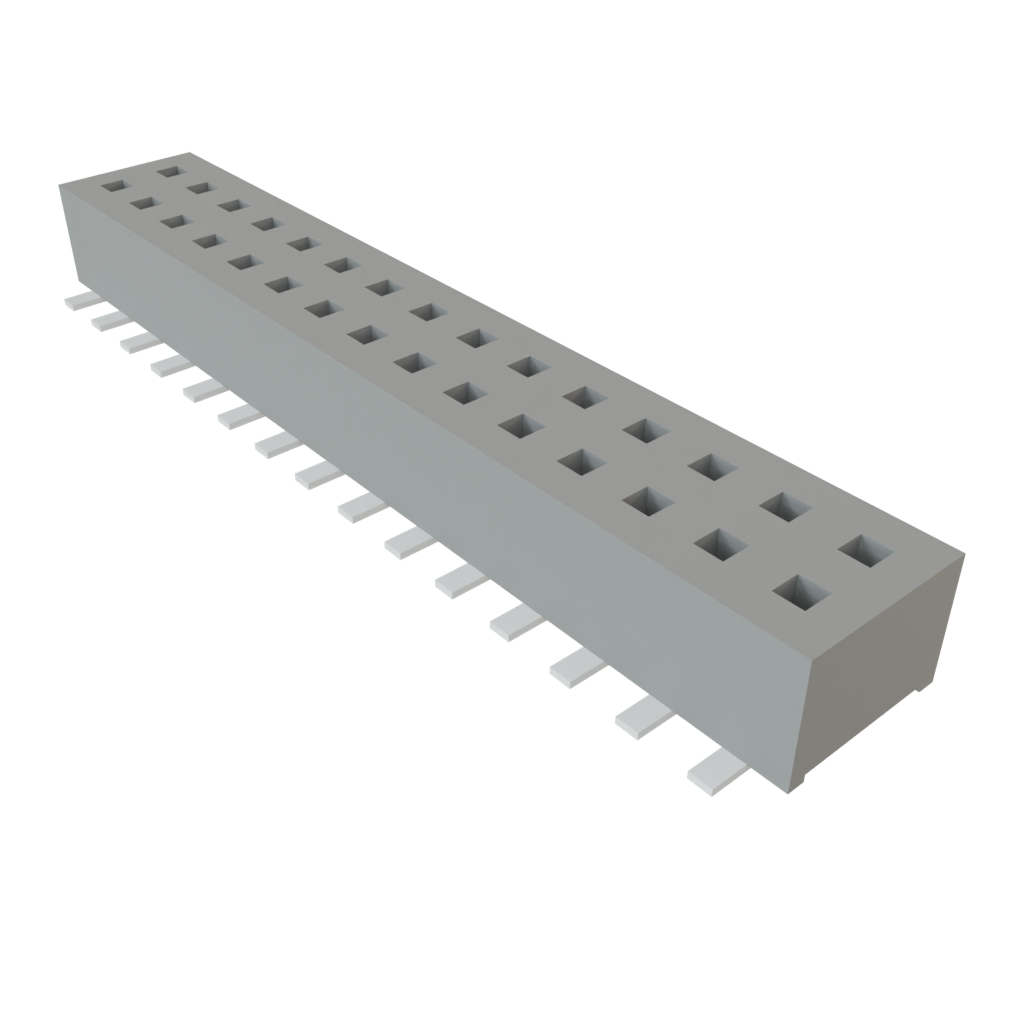

CLP-115-02-F-D Samtec Connector Headers and PCB Receptacles - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- Samtec
- Product name
- CLP-115-02-F-D
- Product classification
- Connector Headers and PCB Receptacles
- Lifecycle Status
- Active
- RoHS
- RoHS
- Number of positions
- 30
- Type
- Straight
- Pitch
- 1.27mm
- Series name
- CLP
- Rated current
- 3.3A/Contact
- Rated Voltage(DC)
- 330V
- Other names
- 3937-CLP-115-02-F-D | SAM1153-15
- Connector Type
- Receptacle
- Contact Finish Thickness
- 0.099um
- Contact Type
- Female Socket
- Contact point finish
- Gold
- Contact(Post) Finish
- Tin
- Fastening Type
- Push-Pull
- Height
- 2.28mm
- Insulation Color
- Black
- Insulation Height
- 2.29mm
- Length
- 19.48mm
- Material Flammability Rating
- UL94 V-0
- Maximum operating temperature
- 125C
- Minimum operating temperature
- -55C
- Mounting Type
- Surface mount
- Number of Positions Loaded
- All
- Number of arrays
- 2
- Number of poles
- 30
- Operating temperature range
- -55 to 125C
- Rated Voltage(AC)
- 240VAC
- Style
- Board to Board
- Terminal shape
- Solder
- Width
- 3.05mm
- Wire connection method
- Solder
