IMSA-6802-01Y901

Iriso Electronic

ESD protection device

Search Alternative Products

Show Similar

IMSA-6802-01Y901

Iriso Electronic

ESD protection device

Iriso Electronic

ESD protection device

Product Overview

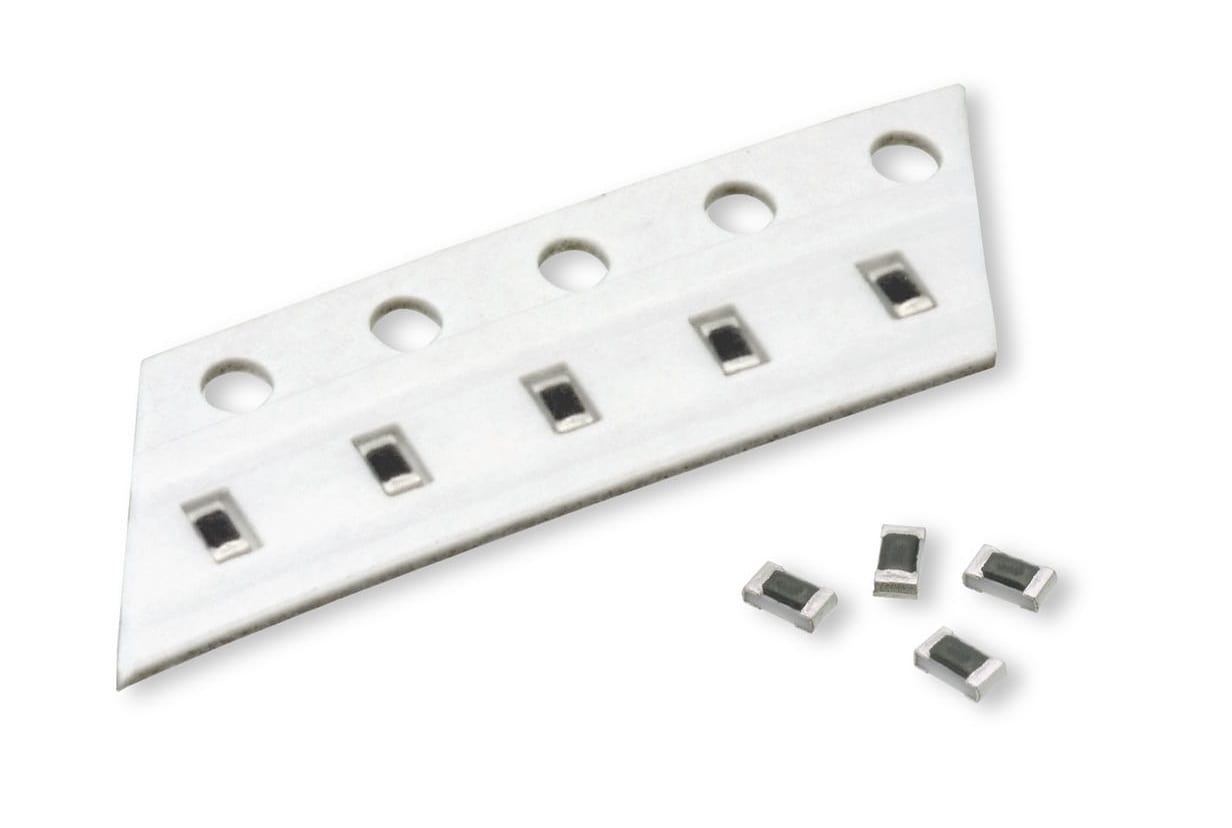

1.6mm×0.8mmサイズの静電気放電（ESD）対策部品。信号ラインとGNDラインの間に取り付けるだけで、回路に進入したESDエネルギーを瞬時に回避します。

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541100080

Search Alternative Products

Show Similar

Product Overview

1.6mm×0.8mmサイズの静電気放電（ESD）対策部品。信号ラインとGNDラインの間に取り付けるだけで、回路に進入したESDエネルギーを瞬時に回避します。

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8541100080

Product Information

3D CAD情報
- SamacSys
PCN/PDN(EOL)

Specifications

Manufacturer name: Iriso Electronic

Product name: IMSA-6802-01Y901

Product classification: ESD protection device

Lifecycle Status: Active

RoHS: RoHS

Series name: IMSA

Package: 1608(0603inch)

Size: 1.60X0.80mm

Manufacturer Packaging: Tape & Reel

Manufacturer packaging quantity: 5000
