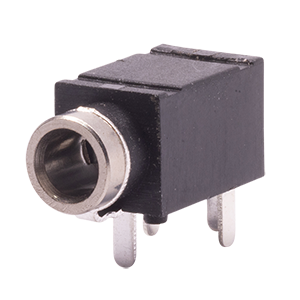

SJ1-2503A

Same Sky (formerly CUI Devices)

Connector Audio and Video

Same Sky (formerly CUI Devices)

Connector Audio and Video

Product Overview

2.5 mm, Stereo, Right Angle, Through Hole, 3 Conductors, 0 Internal Switches, Audio Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

2.5 mm, Stereo, Right Angle, Through Hole, 3 Conductors, 0 Internal Switches, Audio Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: SJ1-2503A

Product classification: Connector Audio and Video

Lifecycle Status: Active

Connector Type: Jack

Rated Voltage(DC): 12V

Mounting Type: Through Hole

Orientation: Horizontal

Shield: No

Number of Ports: 1

Length: 10.8mm

Width: 5mm

Height: 5mm

Size: 10.8X5X5mm

Feature: Through Hole

Other names: SJ12503A | 045-0966R | CP1-2503A

Color: Black

Current　rating: 1A

Description: audio jack, 2.5 mm, rt, stereo, through hole, 0 switches

Input voltage: 4.5 to 5.5V

Number of Conductors: 3

Manufacturer Packaging: Tray
