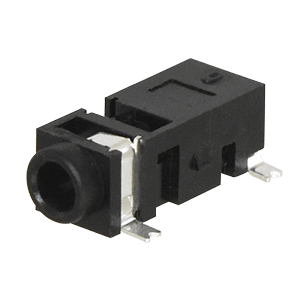

MJ-2523-SMT-TR

Same Sky (formerly CUI Devices)

Connector Audio and Video

Same Sky (formerly CUI Devices)

Connector Audio and Video

Product Overview

Conn 2.5MM Mono Jack F 2 POS Solder RA SMD 2 Terminal 1 Port T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

Conn 2.5MM Mono Jack F 2 POS Solder RA SMD 2 Terminal 1 Port T/R

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: MJ-2523-SMT-TR

Product classification: Connector Audio and Video

Lifecycle Status: Active

RoHS: RoHS

Connector Type: Jack

Rated Voltage(DC): 12V

Mounting Type: Surface Mount

Orientation: Horizontal

Shield: No

Number of Ports: 1

Length: 13.6mm

Width: 5mm

Height: 4.5mm

Size: 12X5X4.5mm

Feature: Surface Mount

Other names: CP-2523MJTR | MJ2523SMTTR | 045-0523R | CP-2523MJDKR | MJ-2523-SMT | CP-2523MJCT-NDR | CP-2523MJCT | CP-2523MJTR-NDR

Color: Black

Current　rating: 1A

Description: audio jack, 2.5 mm, rt, mono, SMT, 1 switch, T&R package

Input voltage: 4.5 to 14V

Number of Conductors: 2
