CSS-0578-SMT-TR

Same Sky (formerly CUI Devices)

Audio Indicators and Alerts

Search Alternative Products

Show Similar

CSS-0578-SMT-TR

Same Sky (formerly CUI Devices)

Audio Indicators and Alerts

Same Sky (formerly CUI Devices)

Audio Indicators and Alerts

Product Overview

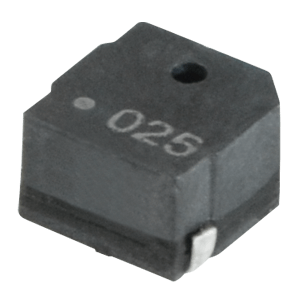

5 mm, 3 V, 78 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

ECCN : EAR99

HTSN : 8531809041

Search Alternative Products

Show Similar

Product Overview

5 mm, 3 V, 78 dB, Surface Mount (SMT), Magnetic Audio Transducer Buzzer

ECCN : EAR99

HTSN : 8531809041

Product Information

Data sheet
3D CAD情報
- SamacSys

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: CSS-0578-SMT-TR

Product classification: Audio Indicators and Alerts

RoHS: RoHS

Size: 5X5X3mm

Maximum operating temperature: 70°C

Minimum operating temperature: -30°C

Other names: 102-2203-1 | 102-2203-2 | CSS0578 | CSS-0578 | 102-2203-6 | 2266-CSS-0578-SMT-TR | CSS-0578-SMT | 037-4233R

Consumption current: 95mA

Dimension: 0.2, 0.12, 0.2in

Height: 3mm

Illumination: No

Input type: Vo-p

Length: 5mm

Mounting Type: Surface Mount

Rated Voltage: 3

Shape: Square

Technology: Magnetic

Width: 5mm

If you find an error in the product information, please let us know here.

Details

Click here for 3D Model

Documents

Data Sheet
Datasheet	EN_Same Sky (formerly CUI Devices)_Datasheet_20240419182640659
Certificate
Certificate of RoHS Compliance	EN_Same Sky (formerly CUI Devices)_Certificate of RoHS Compliance_20250204204557831
Design and Simulation Data
Symbol/Footprint/3D Model	EN_Same Sky (formerly CUI Devices)_Symbol/Footprint/3D Model_20250204182809490
Footprint	EN_Same Sky (formerly CUI Devices)_Footprint_20250204185712101
