ERF8-010-05.0-S-DV-K-TR  Samtec  Connector Socket  -  商品詳細情報

ERF8-010-05.0-S-DV-K-TR

Samtec

Connector Socket

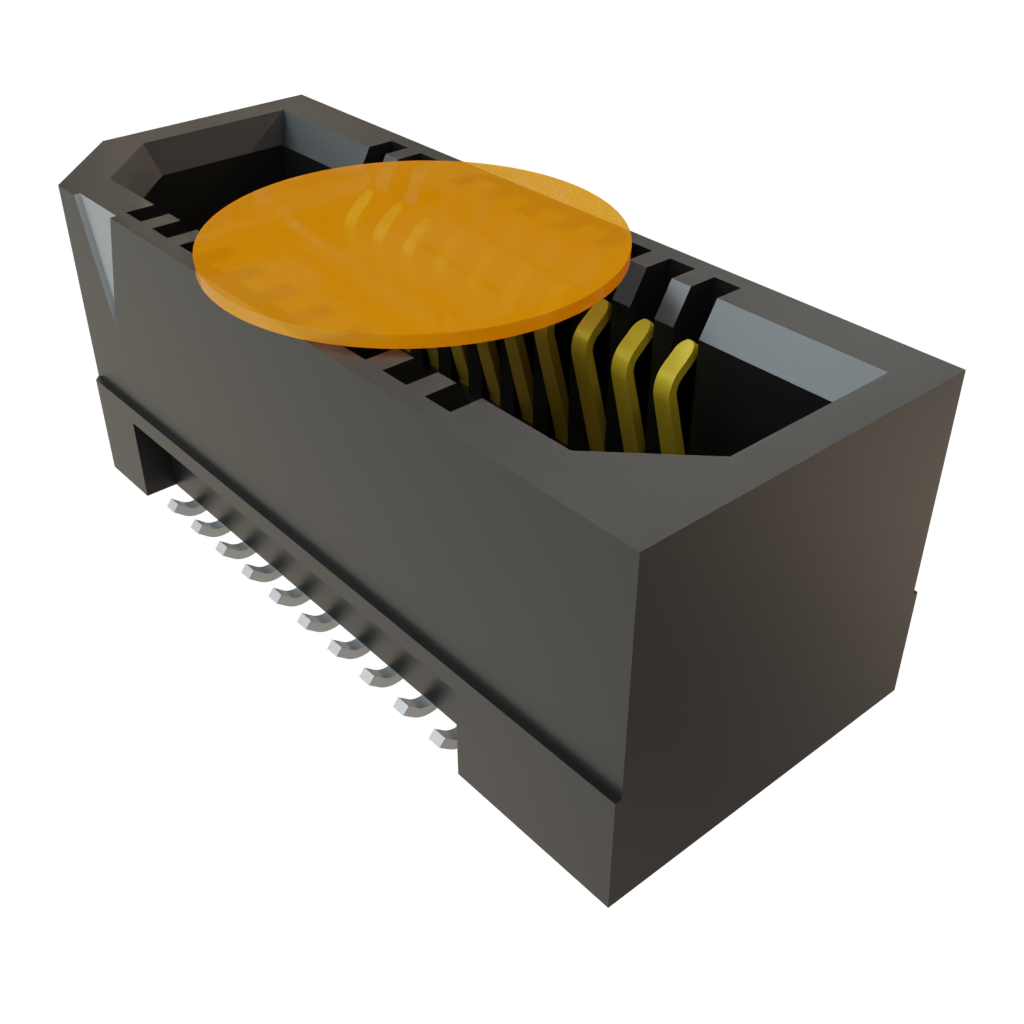

ERF8-010-05.0-S-DV-K-TR Samtec

The images are for reference only. For the precise specifications, refer to the product specifications.

Added to bookmarks.

    • Search Alternative Products

    ERF8-010-05.0-S-DV-K-TR

    ERF8-010-05.0-S-DV-K-TR

    Samtec

    Connector Socket

    Samtec

    Connector Socket

    Added to bookmarks.
    • Product Overview

    0.80 mm Edge Rate® Rugged High Speed Socket

    Lifecycle Status : Active
    ECCN : EAR99

    HTSN : 8536694040

    Search Alternative Products

    Product Overview

    0.80 mm Edge Rate® Rugged High Speed Socket

    Lifecycle Status : Active
    ECCN : EAR99

    HTSN : 8536694040

    Product Information

    Related Videos
    Data sheet
    Design/Simulation Data
    Symbol/Footprint/3D Model(UltraLibrarian) Download from Ultra Librarian
    Other Documents
    Data Sheet
    Datasheet EN_Samtec_Datasheet_20150113181908806
    Design and Simulation Data
    Symbol/Footprint/3D Model(UltraLibrarian) Download from Ultra Librarian

    Specifications

    Manufacturer name
    Samtec
    Product name
    ERF8-010-05.0-S-DV-K-TR
    Product classification
    Connector Socket
    Lifecycle Status
    Active
    RoHS
    RoHS
    Other names
    3937-ERF8-010-05.0-S-DV-K-TR | ERF8-010-05.0-S-DV-K-FR | ERF8010050SDVKTR | SAM8618TR | SAM8618DKR | SAM8618CT
    Height
    5.33mm
    Length
    14mm
    Maximum operating temperature
    125C
    Number of arrays
    2
    Number of poles
    20
    Pitch
    0.8mm
    Product type
    SKT
    Series name
    ERF8
    Type
    Micro High Speed Socket Strip
    Width
    5.6mm
    Wire connection method
    Solder
    Manufacturer Packaging
    Tape & Reel
    Manufacturer packaging quantity
    1

    If you find an error in the product information, please let us know here.
