Product Overview

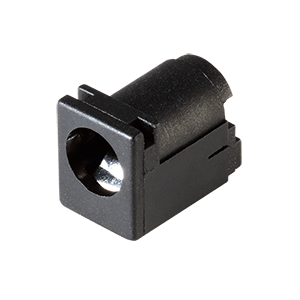

2.0 x 6.5 mm, 5.0 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

2.0 x 6.5 mm, 5.0 A, Horizontal, Through Hole, Dc Power Jack Connector

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

Specifications

Manufacturer name: Same Sky (formerly CUI Devices)

Product name: PJ-037AH

Product classification: Connector Power

Lifecycle Status: Active

Series name: power jack, 2.0 x 5.5 mm, horizontal, through hole, high current, 0 switches

Rated Voltage(DC): 24V

Rated Voltage(AC): 24VAC

Connector Type: Jack

Inner diameter: 2mm

Mounting Type: Through Hole

Orientation: Horizontal

Number of Conductors: 2

Shield: No

Length: 14.5mm

Width: 9mm

Height: 11mm

Size: 14.5X9X11mm

Feature: Through Hole

Dimension: 0.57, 0.35, 0.43in

Current　rating: 5A

Other names: 045-1150R | PJ037AH | CP-037AH

Manufacturer Packaging: Bulk
