PFXST6300TADE Schneider Electric Touch panel display monitor - 商品詳細情報

PFXST6300TADE

Schneider Electric

Touch panel display monitor

Search Alternative Products

Show Similar

PFXST6300TADE

Schneider Electric

Touch panel display monitor

Schneider Electric

Touch panel display monitor

Product Overview

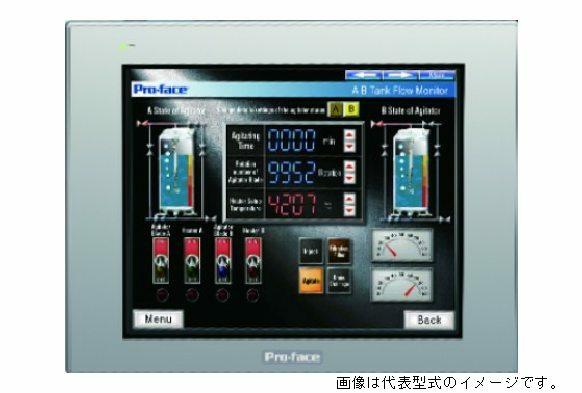

Touch Panel HMI ST6300T

Search Alternative Products

Show Similar

Product Overview

Touch Panel HMI ST6300T

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Schneider Electric

Product name: PFXST6300TADE

Product classification: Touch panel display monitor

Touch panel: Analog resistive method

Display color: 262,000 colors

Display size: 5.7

External dimensions: W169.5XH137XD58mm

Mass: Less than 0.8kg

Rated Voltage(DC): 24V

Specification 1: Display dots: 640X480(VGA)

Specification 2: Application memory: system memory | FLASH EPROM, screen area | 64MB, user font area | 8MB, logic program area | 132KB

Specification 3: Panel cutout dimensions: W156XH123.5mm

Specification 4: Display device: TFT color LCD

If you find an error in the product information, please let us know here.

Details

High-resolution and colorful display improves visibility and operability.High connectivity with IT/OT.Easily replace with the latest HMI with minimal changes.

Expected Shipping Date : Dec-19-25

C1S Part Number
:
C1S704301338724

Ship-from

Stock : 3

Quantity

Add to BOM

Existing BOM

New BOM

Quote

Download quote (PDF).

MOQ/SPQ : 1/1
Minimum: 1 Multiples: 1

Quantity	Pricing(USD)
1+	US$1,060

Price: US$1,060

Merchandise total: US$1,060.00

Processing costs, etc.: US$0

Total(USD): US$1,060.00
