Product Overview

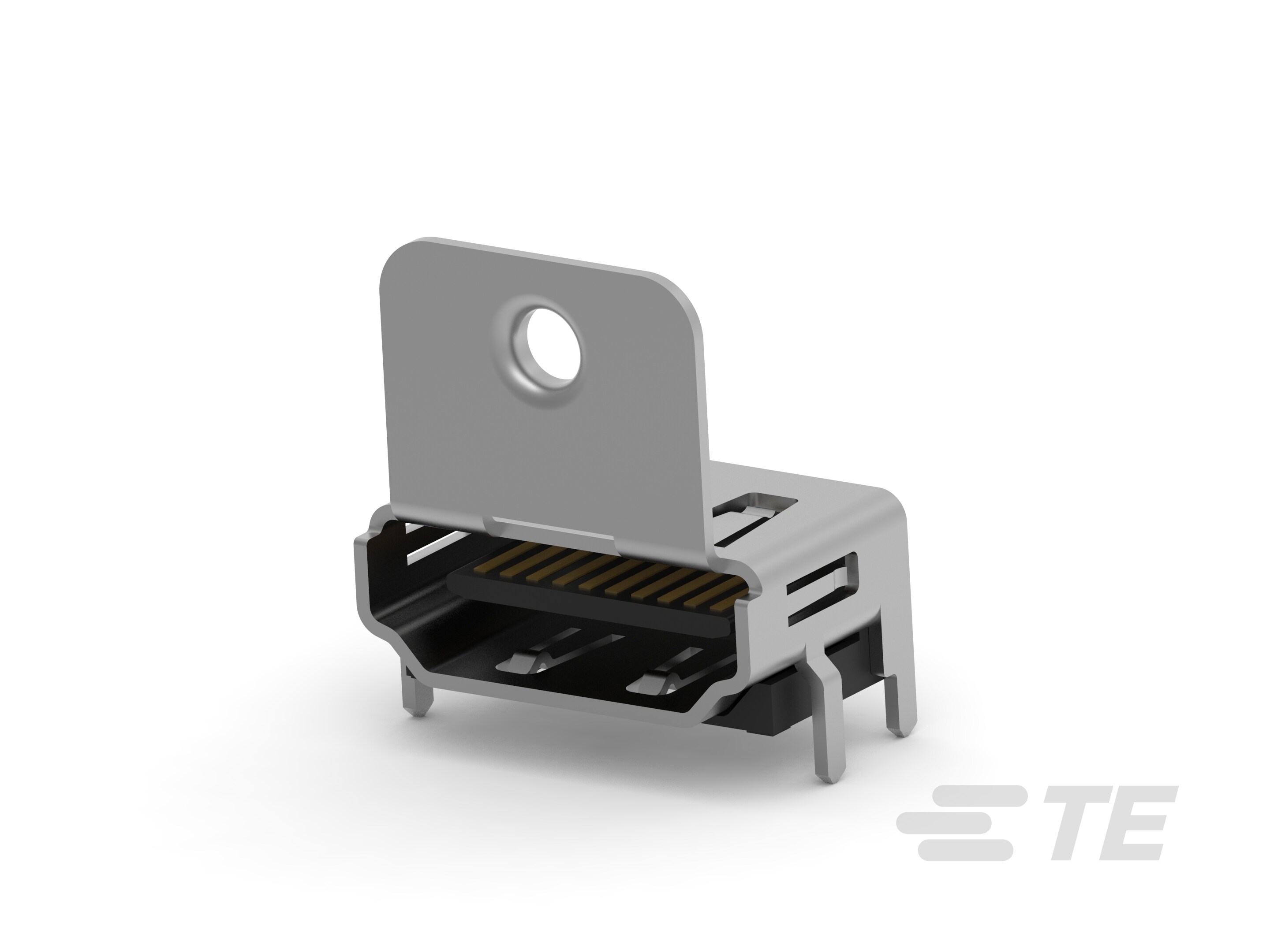

Conn HDMI RCP 19 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray

Lifecycle Status : Obsolete

ECCN : EAR99

HTSN : 8536698000

Search Alternative Products

Show Similar

Product Overview

Conn HDMI RCP 19 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Tray

Lifecycle Status : Obsolete

ECCN : EAR99

HTSN : 8536698000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: TE Connectivity

Product name: 5-1903015-4

Product classification: Connector Audio and Video

Lifecycle Status: Obsolete

RoHS: RoHS

Pitch: 0.5mm

Number of poles: 19

Product type: レセプタクル

Length: 16.2mm

Width: 9mm

Height: 15.4mm

Maximum operating temperature: 105C

Wire connection method: Solder

If you find an error in the product information, please let us know here.
