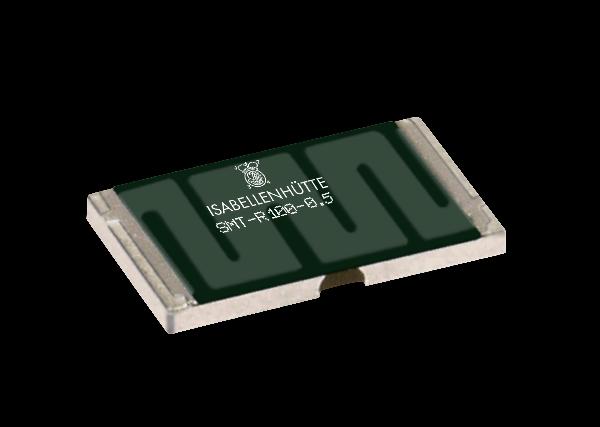

SMT-R025-1.0 Isabellenhuette Shunt resistor/Current sensing resistor - 商品詳細情報

SMT-R025-1.0

Isabellenhuette

Shunt resistor/Current sensing resistor

Search Alternative Products

Show Similar

SMT-R025-1.0

Isabellenhuette

Shunt resistor/Current sensing resistor

Isabellenhuette

Shunt resistor/Current sensing resistor

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8533210000

Search Alternative Products

Show Similar

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8533210000

Product Information

3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Specifications

Manufacturer name: Isabellenhuette

Product name: SMT-R025-1.0

Product classification: Shunt resistor/Current sensing resistor

Lifecycle Status: Active

RoHS: RoHS

Package: 7142(2817inch)

Resistance value: 0.025Ohm

Tolerance: 1%

Rated power: 7W

Temperature coefficient: 50ppm/K

Rated current: 16.7A

Size: 7.1X4.2mm

Service temperature range: -65 to 170C

Temperature range: 70C

Automotive Authentication: AEC-Q200

If you find an error in the product information, please let us know here.
