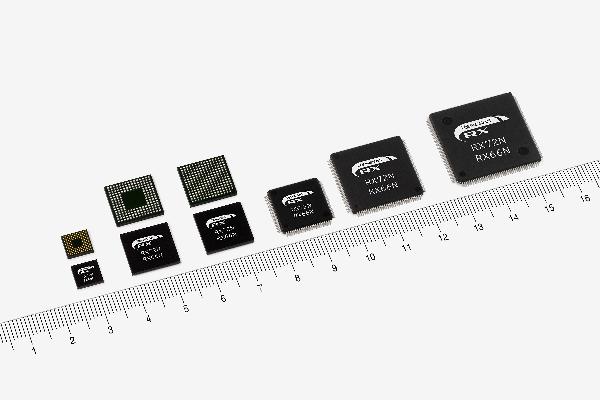

Manufacturer name

Renesas Electronics

Product name

R5F572NNDDFC#30

Product classification

Microcontrollers

Lifecycle Status

Active

RoHS

RoHS

Number of bits

32bit

Core

RXv3

Speed

240MHz

FLASH

32KB

RAM

1024KB

I/O port

137

Peripheral (USB)

Yes

Peripheral (Ethernet)

Yes

Package

pkg_11746

Other names

559-R5F572NNDDFC#30 | -1161-R5F572NNDDFC#30

10-Bit A/D Converter (ch)

0ch

10-Bit D/A Converter (ch)

0ch

12-Bit A/D Converter (ch)

29ch

12-Bit D/A Converter (ch)

2ch

12-Bit Timer (ch)

0ch

14-Bit A/D Converter (ch)

0ch

16-Bit A/D Converter (ch)

0ch

16-Bit D/A Converter (ch)

0ch

16-Bit Timer (ch)

18ch

24-Bit Sigma-Delta A/D Converter (ch)

0ch

2D Drawing Engine

Yes

32-Bit High Res Timer (ch)

0ch

32-Bit Timer (ch)

7ch

8-Bit D/A Converter (ch)

0ch

8-Bit Timer (ch)

4ch

ADC

12bitX29ch

Accelerator

三角関数

Analog Comparator (ch)

0ch

Asynchronous General Purpose Timer

0ch

Asynchronous General Purpose Timer / Interval Timer (ch)

0ch

Bit Length

32

CAN

3ch

CAN-FD (ch)

0ch

CPU

RXv3

CPU Architecture

RX

Camera I/F (Parallel)

8-bit

Capacitive Touch Sensing Unit (ch)

0ch

Category 2

RX 32-Bit Performance / Efficiency MCUs

Class

IC

DAC

12bitX2ch

DMA

Yes

DMA (ch)

8ch

DMAC or DTC

DTC/DMAC

DRAM I/F

SDRAM I/F

DTC (ch)

Yes

Data Flash

32KB

Debug Interface

JTAG/Single-wire Serial

Delta-Sigma A/D Converter

No

ECC SRAM

Yes

EPC

PLQP0176KB

EtherCat (ch)

0ch

Ethernet

Yes

Ethernet ch

2ch

Ethernet speed

10M/100M

External Interrupt Pins

16

External Memory Bus (bit)

8|16|32bit

Family Name

RX

Floating Point Unit

Single/Double

GPU

No

Graphics LCD Controller

Yes

Group Name

RX72N

High Resolution Output Timer

No

High-Speed Analog Comparator (ch)

0

Human Machine Interface

Graphics LCD Controller,2D drawing engine,Camera Interface PDC,Serial sound interface

I2C

16

I3C (ch)

0

Image Codec

No

IrDA(yes/no)

No

LIN

0

LVD or PVD

Yes

Length

24mm

Low-Power Analog Comparator (ch)

0

MIPI Interfaces (CSI) (ch)

0ch

MIPI Interfaces (DSI/CSI)

0

Main CPU

RXv3

Number of Supply Voltage(s)

1

OPAMP (ch)

0

OSPI (ch)

0ch

On-chip Oscillator

Yes

Operating Freq of Sub CPU (Max)

0

Operating Freq(Max)

240MHz

Operating Voltage

2.7 to 3.6V

Operating temperature range

Ta = -40 to 85C

Original supplier name/brand name

renesas

PCI Express (generation and ch)

0

PGA (ch)

0ch

PLP terminated

2038-12-01

PWM Output (pin#)

47ch

Pitch

0.5mm

Power-On Reset

Yes

Program Memory

4096KB

QSPI Interface

1

RTC

Yes

SCI or UART (ch)

13ch

SDHI (ch)

1ch

SPI

16

SPI (ch)

16

SSI

2ch

Security & Encryption

No

Segment LCD Controller

No

Series name

RX700

Size

24X24X1.7mm

Standby operable timer

No

Sub CPU

No

Sub-clock (32.768 kHz)

Yes

Supply Voltage Vcc (Min)

2.7 to 3.6V

Temperature Sensor (ch)

1

Thickness

1.7mm

Timer

8bitX4ch|16bitX18ch|32bitX7ch

Type

LFQFP

UART

13

USB

USB Host||USB Peripheral||USB Ports (ch) x 1||USB Endpoints x 10||USB Isochronous Transfer Support

USB FS (host ch/device ch)

1/1ch

USB HS (host ch/device ch)

0ch

USB Ports

1

USB SS (host ch/device ch)

0ch

USBFS

1ch

USBHS

0ch

Watchdog Timer (ch)

2

Width

24mm

Wireless

No

Manufacturer Packaging

Tray

Manufacturer packaging quantity

120
