71. How to read alphanumeric characters display of inductor, capacitor and resistor

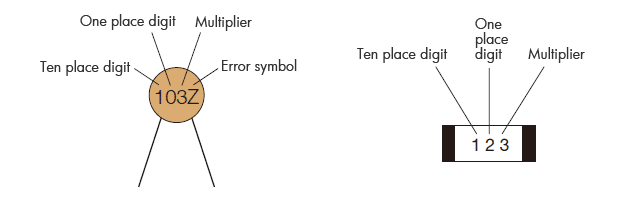

The alphanumeric character display is shown by the three or four digits. The first numeral shows 10 digits, the second numeral shows 1 digit, and the third numeral shows the multiplier in the three digit display. The first figure shows hundred digits, the second figure shows ten digits, the third figure shows one digit, and the fourth figure shows the multiplier in the four digit display. The decimal point shown by R when there is decimal point. The respective units are ω, pF, μH when used by the resistor, the capacitor, and the inductor. The alphabet in the end indicates tolerance.

Representation Resistor Capacitor Inductor

120

12ω

12pF

12μH

122

1.2kω

1.2nF

1.2mH

124

120kω

120nF

120mH

126

12Mω

12μF

12H

R15

0.15ω

0.15pF

0.15μH

1R5

1.5ω

1.5pF

1.5μH

Tolerance representation Tolerance

±1%

±2%

±5%

±10%

±20%

80%,-20%
