ABLIC provides Vital Product Data (VPD) EEPROMs for SSDs (Solid State Drives). ABLIC also provides a lineup of temperature sensors ideal for data centers, servers and high-end PCs, and a lineup of VPDs with SMBus ARP (Address Resolution Protocol) function, which support the development of a wide variety of SSDs.

What is a VPD EEPROM?

VPD is a device designed to store information about PCIe SSD as shown in “Table 1”.

SSD (Solid State Drive) 向けのVPD (Vital Product Data) EEPROM

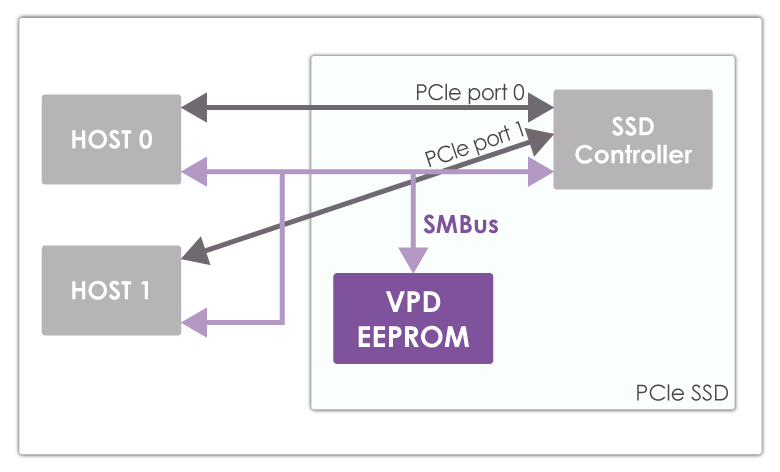

VPD is a device that connects to the SSD controller and the host via SMBus. Users can write/read information and data via SMBus.VPD EEPROMs are particularly in demand for multi-part PCIe SSDs, where interconnected information is becoming more complex.
VPD EEPROMとは?

ABLIC’s VPD EEPROMs

ABLIC’s VPD EEPROMs support the development of PCIe SSDs for data centers, servers and high-end PCs.
By using ABLIC VPD EEPROMs, the following is possible:

  1. Enhance thermal throttling performance (S-585AA)
    ・Using a built-in ±0.25℃ typ. high-accuracy digital temperature sensor.
  2. Able to add SSDs while power is on (S-585AA)
    ・Using a built-in SMBus ARP (Address Resolution Protocol) function support for Hot-plug* via SMBus.
  3. Can be connected to a low voltage 1.8V AUX power supply (S-585AA, S-34TS04L)
    ・With a 1.7V min low-voltage operation.
*Hot-plug: a mechanism that allows devices to be connected or faulty components to be replaced while the system is operational.

What is SMBus ARP (Address Resolution Protocol) function?

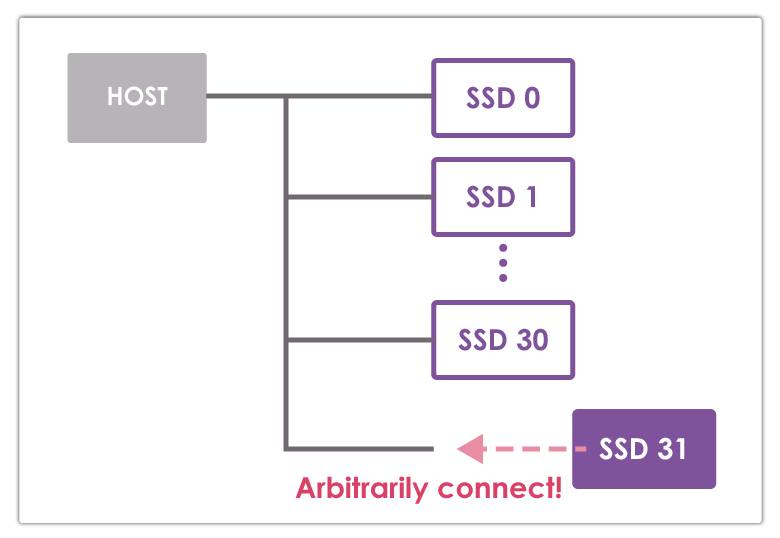

The SMBus ARP is a function that allows a HOST to assign arbitrary addresses to target devices using the SMBus; this allows for easy SSD adding.

Benefits
  1. Able to add SSDs while power is on with Hot-plug
  2. Able to add more than 32 SSDs per Host
  3. Able to remove external multiplexer
SMBus ARPとは?

Why we propose our products for SSD

ABLIC offers VPD EEPROMs with built-in SMBus ARP function and high temperature accuracy, as well as a lineup of ICs that are ideal for SSDs in addition to those for VPDs.

VPD EEPROM

S-585AA
4k-bit, Built-in Temp. Sensor and SMBus ARP function, High temperature accuracy ±0.25°C typ. Datasheet(PDF)
S-34TS04L
4k-bit, Built-in Temp. Sensor, 1.7Vmin operation Datasheet(PDF)

Temperature Sensor ICs

S-5852A
±1.0°C max. (Ta = 0°C to +65°C) with Thermostat function Datasheet(PDF)

Voltage Detectors (Reset ICs)

S-1009
Operating voltage 0.6V to 10.0V
Detection voltage 0.8V to 4.6V
Datasheet(PDF)
