Digital 3-axis Accelerometers

Size 7.0 x 8.6 x 3.3 mm3 (w x l x h)
Advanced self-diagnostic features
Qualified according to AEC-Q100 standard
Package, pin-out and SPI protocol compatible with Murata digital accelerometer product family
RoHS compliant Dual Flat Lead (DFL) plastic package suitable for lead free soldering process and SMD mounting

3-axis Accelerometer with digital SPI interface

Size 7.6 x 8.6 x 3.3 mm3 (w x l x h)
3-axis high performance accelerometer with ±1.5 to ±6g user selectable measurement range
Extensive self-diagnostics features
Ground breaking bias stability, low noise level and good vibration robustness
SPI digital interface
Unique mechanical over damping
−40°C…+125°C operating range
3.0V…3.6V supply voltage with 1mA current consumption
Proven capacitive 3D-MEMS technology

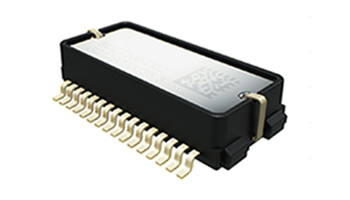

Combined X-axis Gyroscope & 3-axis Accelerometer

Size 12.1 x 19.71 x 4.6 mm3 (w x l x h)
Angular rate measurement around X-axis
Acceleration measurement in X, Y and Z directions
Self diagnostics features
RoHS compliant

Combined X-axis or Z-axis Gyroscope & 3-axis Accelerometer

Single axis X or Z-axis gyroscope with ±125°/s or ±300°/s measurement range
3-axis accelerometer with ±2g or ±6g measurement range
Extensive self diagnostics features
SPI digital interface
User selectable low pass filter via SPI
−40°C…+125°C operating range
3.0V…3.6V supply voltage
Size 12.1 x 15.0 x 4.35 mm (w x l x h)
Product platform qualified according to AEC-Q100 standard and compliant to ISO26262 standard
Automotive qualified product versions are available on request
Also gyro only version available

MEMS sensors provide reliable, automotive qualified components for inertial navigation in Autonomous vehicle. A 6 DOF (Degrees Of　Freedom) Inertial Measurement Unit　provides data of the vehicle movement independent of the climate conditions, other vehicles in traffic, velocity of the vehicle and generally works as “voice of reason” in conditions where other sensor systems are confused. Integration of the IMU to GNSS enables positioning in situations with reduced GNSS reception or lack of GNSS signal. IMU integration also enables improvement of GNSS accuracy from scale of meters to centimeters, what is needed for positioning within lane.

Opens new possibilities in patient monitoring and elderly care in hospitals, assisted living and even at homes. Embedded heart and respiration rate and beat-to-beat time signal processing enabling patient monitoring from bed occupancy to sleep condition analysis.

MEMS sensors offer reasonably priced opportunities to build systems for Structural Health Monitoring. Murata MEMS sensor portfolio has options from highest accuracy and stability to solutions with low power consumption but yet high enough accuracy to monitor minor changes in structural health. Murata sensors offer very low noise level to measure disturbing events and stability to detect smallest changes of displacement.

Achieving positional adjustments is an ideal application for MEMS-based accelerometers and gyroscopes.Stability, noise and immunity to mechanical shock, all of which are vital for such precision agricultural applications involving moving heavy mach inery over undulating terrain. In this way the slope, direction of movement, and the change of the slope can be accurately measured. An accelerometer is used to measure the angle of inclination relative to the centre of the earth and a gyroscope is used to measure the speed that the angle changes.

MEMS sensors offer reasonable priced opportunity to build system for both measuring the angle or build system for scale balancing. MEMS accelerometers and inclinometers can be used to get accurate angle reading and in a dynamic environment gyroscope can be used to achieve reliable measurement readings during movement. Murata MEMS sensors have options for the highest possible accuracy in most demanding application and robust sensing solutions to solve issues in moving machine environment. Murata sensors have excellent stability, resolution and linearity to measure smallest possible angles in all situations.
