The MYBSP series of isolated POE DC-DC converters
can supply DC power of up to 25.5W with an Ethernet calbe.
No AC adapter or AC-DC converter is required,
reducing wiring and reducing AC outlet installation work.

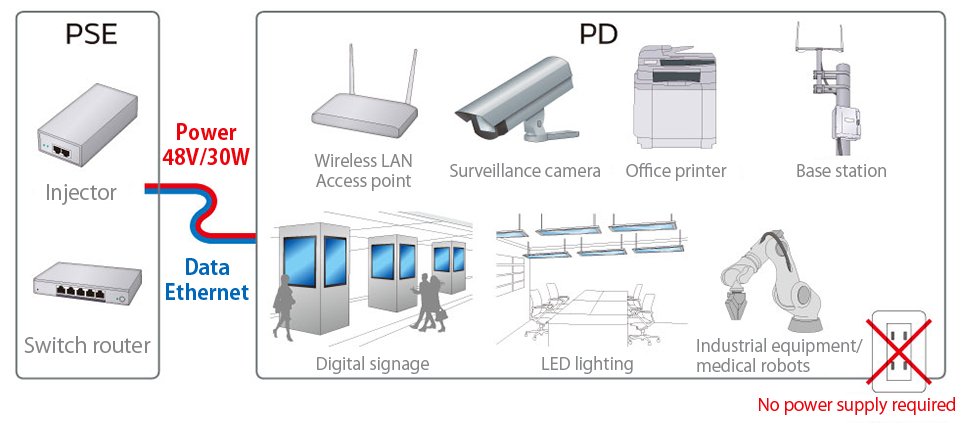

Examples of network equipment using PoE
Specifications
Characteristics
- Compliant with IEEE802.3a or Ieee802.3at
- Compact, low profile, surface mount type
- Compatible with operating ambient temperature of 85℃
- Low noise
- Insulation breakdown voltage between input and output is 2.25kV
- No external capacitor required
(MYBSP0055AABF、MYBSP0122BABF only)
Application
- Conference systems
- LED lighting
- IP phones
- Surveillance cameras
- Biometric authentication
- Wireless access systems
- Digital signage
| Part number | MYBSP0055AABF | MYBSP0122BABF | MYBSP01201ABF |
|---|---|---|---|
| Output voltage | 5.0V | 12V | 12V |
| Output current | 5.1A | 2.125A | 1A |
| Output power | 25.5W | 12W | |
| Efficiency | 90.50% | 92.50% | 84.00% |
| Operational temperature range | -40～+85℃ | ||
| Dimensions | 22.4 x 35.5 x 10.55mm | 14.8 x 26 x 6.2mm | |
| Standard | IEEE802.3at | IEEE802.3af | |
