AC/DC Converter

The RECOM group is a power supply manufacturer headquartered in Austria with over four decades of experience in developing and manufacturing the latest standard and custom power converter technology, from sub-1W to tens of kW.
Customers worldwide, have access to our vast selection of DC/DC converters and AC/DC power supplies along with a broad range of switching regulators and LED drivers, all of which comply with international safety standards and carry the latest certifications.

RACM230-G Series

230W 4”x 2” AC/DC with baseplate cooling and medical certification with enclosure options.

The RACM230-G Series is designed to support up to 160 watts continuous output power without fan cooling. The compact 2”x4” baseplate design enables direct heat dissipation through metal housings in the application. Up to 230 watts are available to drive dynamic loads for several seconds of peak power or with forced air for even longer timeframes. A smart fan output is on board as standard. A wide input range of 80 to 264Vac, up to 5000m operating altitude, 4kVac isolation and international safety agency certifications make the series worldwide compliant for medical 2 MOPP, household and industrial ITE applications.

RACM230-24SG

RACM230-24SG/ENC

600W AC/DC features medical certification

RACM600-24SL/OF

New from RECOM – 600W peak AC/DC power supply for industrial, household and medical applications.

RACM600-L/OF Series AC/DC power supply units are designed for operation in natural convection and in systems with certain airflow ventilation to deliver 400 to 600Watt output power. Safety approvals to Medical IEC 60601-1-2; to IT and industrial IEC 62368 standards and operation with worldwide input voltage conditions from 80 to 275Vac in altitudes up to 5,000m making these chassis mount units ideal for global use in medical, industrial or IT related automation processes. For enhanced reliability requirements of applications redundant operation is supported with active current sharing. An additional 5V Stand by output powers housekeeping circuitry to control remote on/off and monitoring functions which are available via PMBus I²C interface. EN55032 class “B” coverage is given without any external components which underlines these power supplies versatility.

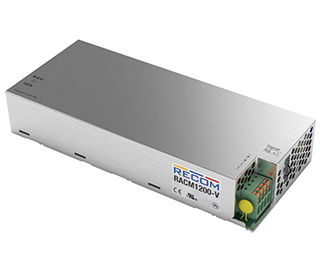

Compact 1200W power supply is baseplate cooled

RACM1200-24SAV/ENC

RACM1200-V baseplate-cooled fan-less power supply with 1200W peak power capability and industrial plus medical certification.

The RACM1200-V series is setting a new benchmark for compactness in the class of AC power supplies for reliable fan-less operation supporting long term system availability. A special baseplate cooled design supports heat transfer to allow up to 1000W continuous output power. Up to 1200 Watt output power is available for up to 10 seconds and in boost mode operation or for extended time with sufficient system airflow through the unit. A wide output voltage adjustment range and a combination of constant current limitation and hiccup mode settings makes the product multipurpose. The various analogue control and monitoring functions are accessible via connector. Optional firmware settings available on project base. The RACM1200-V Series can be limited to inherently fail-safe settings on request, using smart, controlled, fault-limiting functions. Only the /PMB Variant supports default settings ex factory to be adjusted, and warning signals to be adopted. An adjustable 12V system fan output and a 1.5kVAC isolated auxiliary stand by output of 5VSB/1A are available to power the application’s housekeeping functions. Peak efficiency reaches up to 95% and in standby mode, the unit is compliant to ecodesign requirements. The product holds worldwide safety files to medical, industrial and ITE standards along with electromagnetic compatibility compliance with class A immunity and class B emissions. The optional PMBus (Power Management Bus) is based on the widely used and standardized I²C-Bus protocol, to read out settings and actual states, or write parameter settings and limits. A RECOM tailor made CLI (command line interface) is available for easy access. All these features make the product one of the easiest to integrate modular power solutions in the industry.

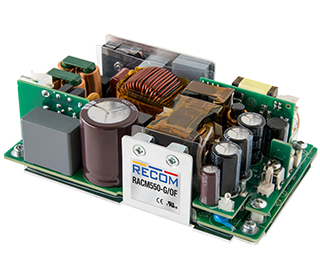

550 Watt 3”x 5” power supply features baseplate cooling for 2 x MOPP

RACM550-24SG/OF

RACM550-G series support fanless operation with an innovative thermal baseplate design for medical, industrial, ITE and household applications.

The RACM550 Series is designed to support up to 300 Watt continuous output power without fan cooling. The compact 3”x 5” baseplate design enables direct heat dissipation through metal housings in the application. Up to 550 watts are available to drive dynamic loads for several seconds of peak power or with forced air for even longer time frames. A smart fan output is on board as standard as well as a 5V/1A VSB output for applications with housekeeping circuits and on/off control. A wide input range of 80 to 264VAC, up to 5000m operating altitude and international safety agency certifications make the series worldwide compliant for medical 2 MOPP, household and industrial ITE applications.
