TE Connectivity (TE) is a world manufacturing leader of relays, offering innovative relay products of consistently high quality and system solutions.

LOW POWER PCB RELAYS

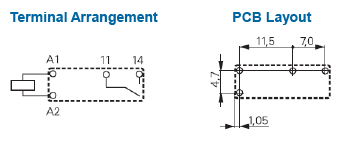

PCJ Series

PCJシリーズ

Features

  • Slim power relay
  • Sensitive coil 200mW
  • WG version: product in accordance to IEC60335-1

Typical applications

  • Washer, Air-conditioner, Oven, Refrigerator, etc.

Typical load

  • Fan motor, lump, small load

Specifications

Contact Form 1Form A
Contact rating PCJ 3A250Vac
PCJ-WG 5A 250Vac
Electrical life 100,000ops
Coil Voltage DC3V~DC24V
Coil Power 200mW

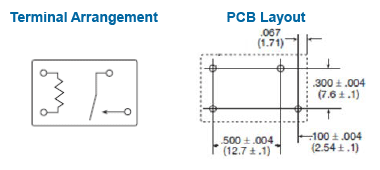

OJ/OJE Series

OJ/OJEシリーズ

Features

  • Small Size
  • Wide contact rating (3A to 10A)
  • Sensitive coil version available
  • High dielectric strength (4kV)

Typical applications

  • Washer, Air-conditioner, Oven, Refrigerator, rice cooker, Dryer, etc.

Typical load

  • Heater, valve, Fan motor, power supply, motor

Specifications

Contact Form 1Form A
Contact rating LM 3A250Vac
DM 5A 250Vac
LMH2 8A 250Vac
HM2 10A 250Vac
OJT TV-5
Electrical life 100,000ops
Coil Voltage DC5V~DC24V
Coil Power LM / LMH2 200mW
DM / HM2 450mW
OJT 250mW/450mW

PCH Series

PCHシリーズ

Features

  • Small Size 1 From C relay
  • Sensitive coil version available

Typical applications

  • Washer, Air-conditioner

Typical load

  • Louver motor, Fan motor, valve control

Specifications

Contact Form 1Form A, 1 Form C
Contact rating 1Form A 10A250Vac
1 Form C 5A/3A 250Vac
Electrical life 100,000ops
Coil Voltage DC5V~DC24V
Coil Power Sensitive 200mW
Standard 400mW

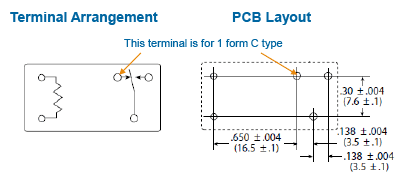

OMIH Series

PCHシリーズ

Features

  • High power 16A
  • Low height 20.6mm
  • Meet 10,000V surge voltage

Typical applications

  • Air-conditioner, Oven, Refrigerator, Office machine

Typical load

  • Inverter circuit, Heater, motor, power supply condenser charge

Specifications

Contact Form 1Form A, 1 Form C
Contact rating OMIH 16A 250Vac
Electrical life 100,000ops
Coil Voltage DC5V~DC48V
Coil Power L type 540mW
D type 720mW

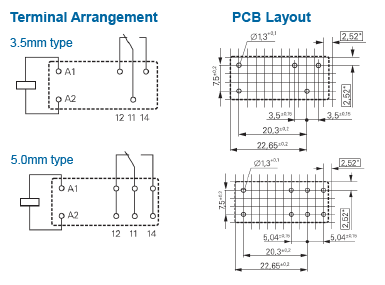

RZ Series

RZシリーズ

Features

  • High power 12A / 16A
  • Low height 15.7mm

Typical applications

  • Air-conditioner, Oven, Refrigerator, Office machine

Typical load

  • Heater, motor

Specifications

Contact Form 1Form A, 1 Form C
Contact rating 12A 250Vac
16A 250Vac
Electrical life 100,000ops
Coil Voltage DC3V~DC48V
Coil Power 400mW

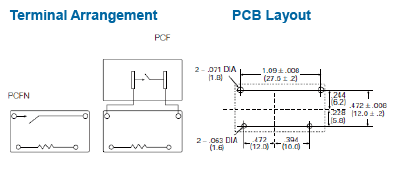

PCF Series

PCFシリーズ

Features

  • High power 25A
  • PCB type available (FCFN)

Typical applications

  • Air-conditioner, Oven, Industrial machine

Typical load

  • Compressor, Inverter circuit, Heater

Specifications

Contact Form 1Form A
Contact rating 25A 250Vac
Electrical life 100,000ops
Coil Voltage DC6V~DC24V
Coil Power 900mW

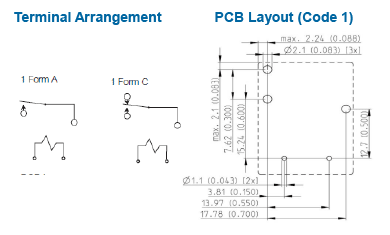

T9G Series

T9Gシリーズ

Features

  • High power 30A
  • Low height 15.7mm (code 1)

Typical applications

  • Air-conditioner, Oven, Industrial machine

Typical load

  • Compressor, Inverter circuit, Heater

Specifications

Contact Form 1Form A, 1 Form C
Contact rating 1Form A 30A 250Vac
1 Form C 20A 250Vac
Electrical life 100,000ops
Coil Voltage DC5V~DC110V
Coil Power 900mW

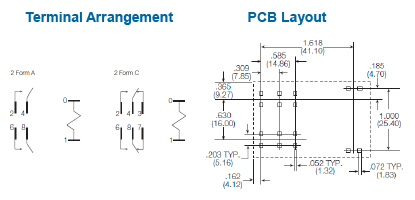

T92 Series

T92シリーズ

Features

  • High power 30A
  • Low height 15.7mm (code 1)

Typical applications

  • Air-conditioner, Oven, Industrial machine

Typical load

  • Compressor, Inverter circuit, Heater

Specifications

Contact Form 2 Form A, 2 Form C
Contact rating 2 Form A 30A 277Vac
2 Form C 30A/3A277Vac
Electrical life 100,000ops
Coil Voltage DC6V~DC110V
AC12V~AC277V
Coil Power DC coil 1,700mW
AC coil 4.0VA
