INTRODUCING : SENSOR DEVELOPMENT BOARDS
TE Connectivity (TE) introduces four new sensor development boards to help accelerate rapid prototyping of new development designs.
With low power and a small footprint, they are particularly suitable for wearable and connected devices that gather and share information about health monitoring, fitness, air quality and related applications.
Each provide the necessary hardware and software libraries to interface with multiple TE digital sensor products.
KEY BENEFITS
- Help accelerate product development and rapid prototyping for pressure, temperature, and humidity sensors
- Provide an easy interface to standard platforms with Microchip Explorer 16, ARDUINO/Genuino, Grove or Raspberry Pi options
- Utilize firmware on TE.com and GitHub.com
APPLICATIONS
- Medical
- Wearables
DISTINGUISHING CHARACTERISTICS
- 0% to 100% relative humidity range
(HTU21D and MS8607 sensor) - Operating pressure range: 300 to 1200 mbar
(MS5637 sensor) - Measures temperature from -40°C to +125°C,accuracy from 0.1°C to 0.5°C
(TSYS0101 sensor) - Contactless temperature measurement from 0°C to +100°C
(TSD305-1C55)
PI WEATHER SHIELD
The MEAS Pi weather shield provides the necessary hardware to any system that utilizes Raspberry Pi compatible expansion ports configurable for I2C communication.
PI WEATHER SHIELD / Datasheet
Python framework and example source code available on Github
IBM Bluemix recipe available on developerWorks

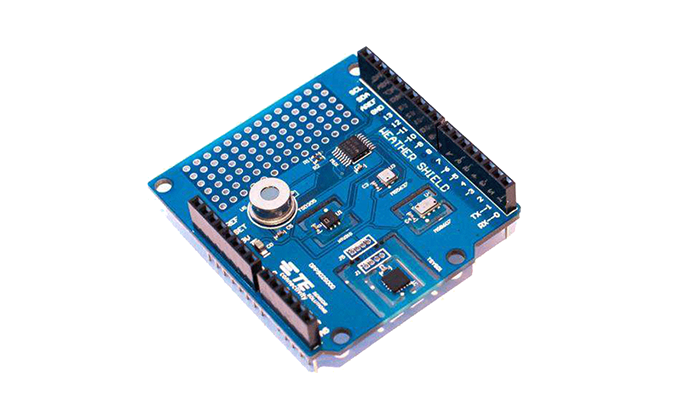

WEATHER SHIELD FOR ARDUINO/GENUINO
The MEAS weather shield for ARDUINO/Genuino mother board provides the necessary hardware to any system that utilizes ARDUINO/Genuino mother board compatible expansion ports configurable for I2C communication.
EXPLORER16 PICTAILPLUS MULTISENSE MODULE
EXPLORER16 PICTAILPLUS MULTISENSE MODULE
EXPLORER16 PICTAILPLUS MULTISENSE MODULE Datasheet
BLE Sensor Tag
The sensor tag demo V1.1 reports humidity, temperature and barometric pressure through a standard low power 2.4GHz wireless communication protocol.
Reference Material
Measures relative humidity from 0% to 100%
Measures temperature from -40°C to 125°C
MS5637
Measures pressure from 300 mbar to 1200 mbar
Measures temperature from -40°C to 125°C
TSYS01
Measures temperature from -40°C to 125°C
I2C communication
TSD305-1C55
Measures temperature from 0°C to 100°C
I2C communication
