ADA4350ARUZ Analog Devices Analog Front-End (AFE) - 商品詳細情報
Search Alternative Products
Specifications
- Manufacturer name
- Analog Devices
- Product name
- ADA4350ARUZ
- Product classification
- Analog Front-End (AFE)
- Lifecycle Status
- Active
- RoHS
- RoHS
- Other names
- 505-ADA4350ARUZ | -2735-ADA4350ARUZ | ADA4350ARUZ-ND
- Product name
- AFE FET INPUT ADC DVR 28TSSOP
- Manufacturer Packaging
- Tube
- Manufacturer packaging quantity
- 50
- Related Products
-
There is a compatible evaluation development tool.
If you find an error in the product information, please let us know here.
Documents
Reference Design
Reference designs list is here.
-
EVAL-ADA4350RUZ-P

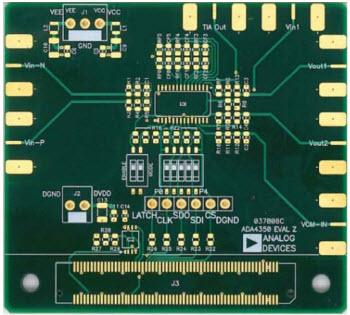

1.General Description EVAL-ADA4350RUZ-P, Evaluation Board is designed to evaluate the ADA4350 offered in a 28-lead, 9.8 mm + 6.4 mm thin shrink small outline package (TSSOP). The evaluation board is a populated board that enables users to quickly prototype the best configuration of the analog front end for their systems. The evaluation board is a 6-layer printed circuit board (PCB) designed to minimize leakage currents with its guard ring features. It accepts SMA edge mounted connectors on the inputs and outputs for efficient connection to test equipment or other circuitry. The evaluation board components are primarily SMT 0603 case size with the exception of the electrolytic bypass capacitors (C9, C10 and C13), which are 1206 case size
