SEAM-20-02.0-S-08-2-A-K-TR Samtec Connector Headers and PCB Receptacles - 商品詳細情報

SEAM-20-02.0-S-08-2-A-K-TR

Samtec

Connector Headers and PCB Receptacles

Search Alternative Products

Show Similar

SEAM-20-02.0-S-08-2-A-K-TR

Samtec

Connector Headers and PCB Receptacles

Samtec

Connector Headers and PCB Receptacles

Product Overview

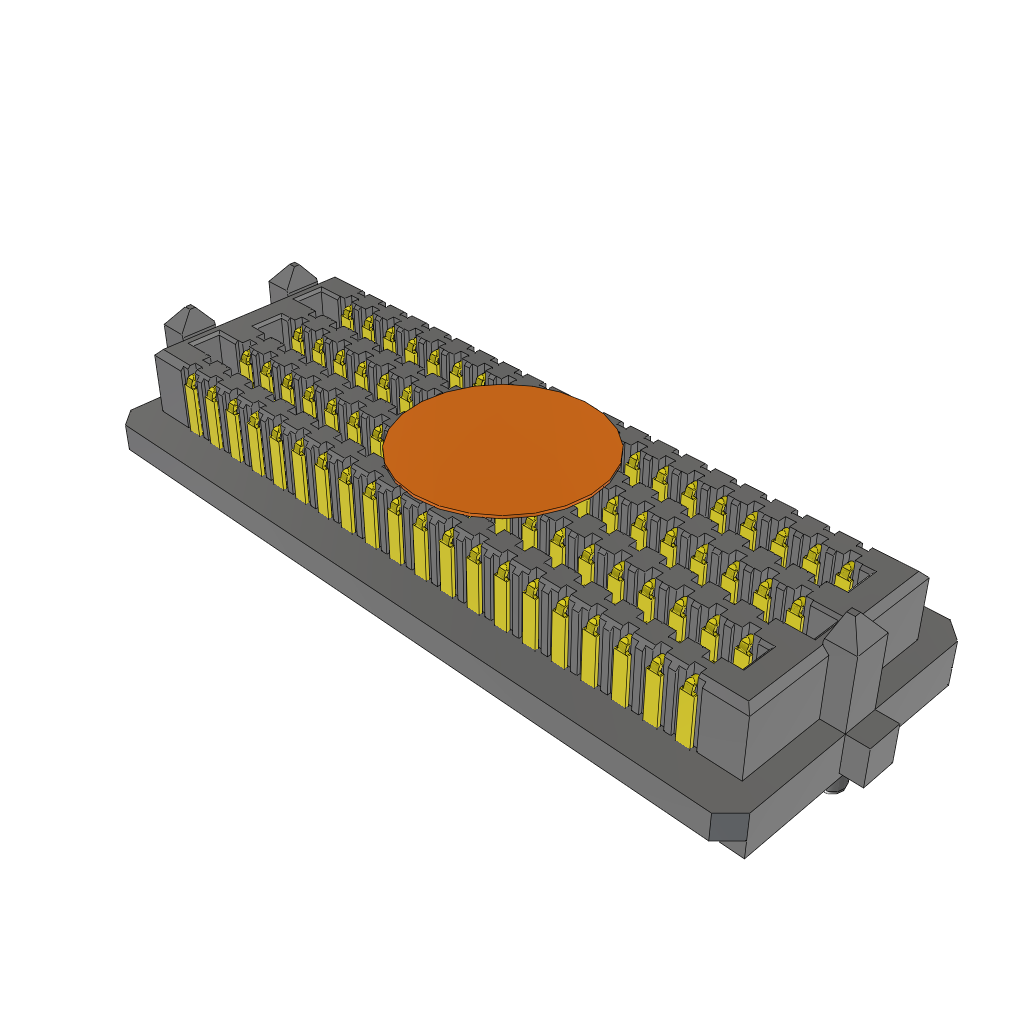

.050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Search Alternative Products

Show Similar

Product Overview

.050" SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal

Lifecycle Status : Active

ECCN : EAR99

HTSN : 8536694040

Product Information

Data sheet
3D CAD情報
- SamacSys
Footprint/Symbol/3D CAD Information

Data Sheet
Datasheet	EN_Samtec_Datasheet_20150113181548293

Specifications

Manufacturer name: Samtec

Product name: SEAM-20-02.0-S-08-2-A-K-TR

Product classification: Connector Headers and PCB Receptacles

Lifecycle Status: Active

RoHS: RoHS

Type: Open Pin Field Array

Pitch: 1.27mm

Series name: SEAM

Height: 5.82mm

Length: 31.27mm

Maximum operating temperature: 125C

Minimum operating temperature: -55C

Number of arrays: 8

Number of poles: 160

Width: 12.14mm

Wire connection method: Solder

If you find an error in the product information, please let us know here.
