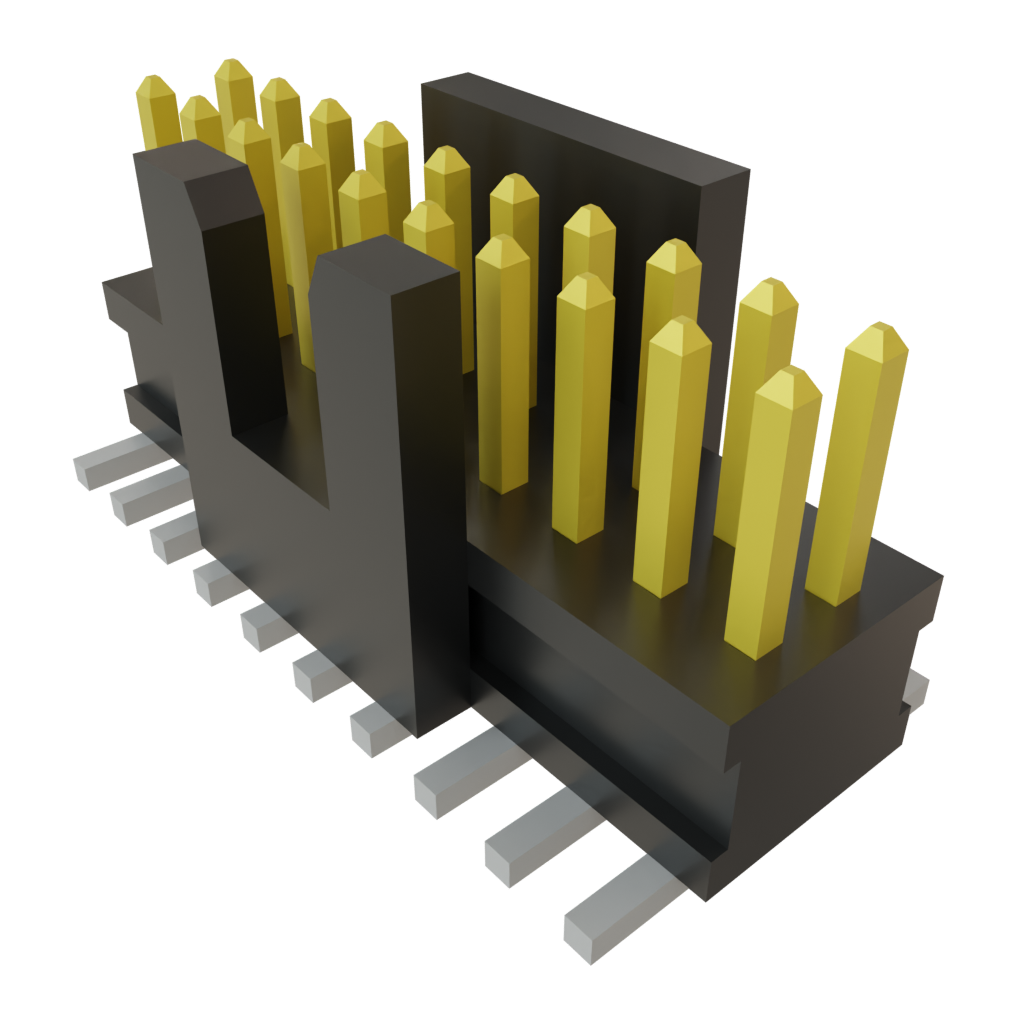

FTSH-110-01-L-DV-K Samtec Connector Headers and PCB Receptacles - 商品詳細情報
Search Alternative Products
Data sheet
Design/Simulation Data
| Symbol/Footprint/3D Model(UltraLibrarian) | Download from Ultra Librarian |
Other Documents
| Data Sheet | |
|---|---|
| Datasheet | EN_Samtec_Datasheet_20150429001243666 |
| Design and Simulation Data | |
| Symbol/Footprint/3D Model(UltraLibrarian) | Download from Ultra Librarian |
Specifications
- Manufacturer name
- Samtec
- Product name
- FTSH-110-01-L-DV-K
- Product classification
- Connector Headers and PCB Receptacles
- Lifecycle Status
- Active
- RoHS
- RoHS
- Number of positions
- 20
- Type
- Unshrouded Header
- Pitch
- 1.27mm
- Series name
- FTSH
- Rated current
- 3.4A/Contacts
- Other names
- SAM8803 | FTSH-110-01-L-DV-K-ND | 3937-FTSH-110-01-L-DV-K
- Connector Type
- Header/Cuttable
- Contact (Mating) Length
- 3.05mm
- Contact Finish Thickness
- 0.25um
- Contact Material
- Phosphor bronze
- Contact Shape
- Square
- Contact Type
- Male Pin
- Contact point finish
- Gold
- Contact(Post) Finish
- Tin
- Fastening Type
- Push-Pull
- Feature
- Keying Sealed
- Height
- 5.97mm
- Insulation Color
- Black
- Insulation Height
- 2.51mm
- Insulation Material
- Liquid Crystal Polymer(LCP)
- Length
- 12.7mm
- Material Flammability Rating
- UL94 V-0
- Maximum operating temperature
- 125C
- Minimum operating temperature
- -55C
- Mounting Type
- Surface mount
- Number of Positions Loaded
- All
- Number of arrays
- 2
- Number of poles
- 20
- Operating temperature range
- -55 to 125C
- Shrouding
- No Shroud
- Style
- Board to Board/Cable
- Terminal shape
- Solder
- Width
- 3.43mm
- Wire connection method
- Solder
- Manufacturer Packaging
- Tube
- Manufacturer packaging quantity
- 1
